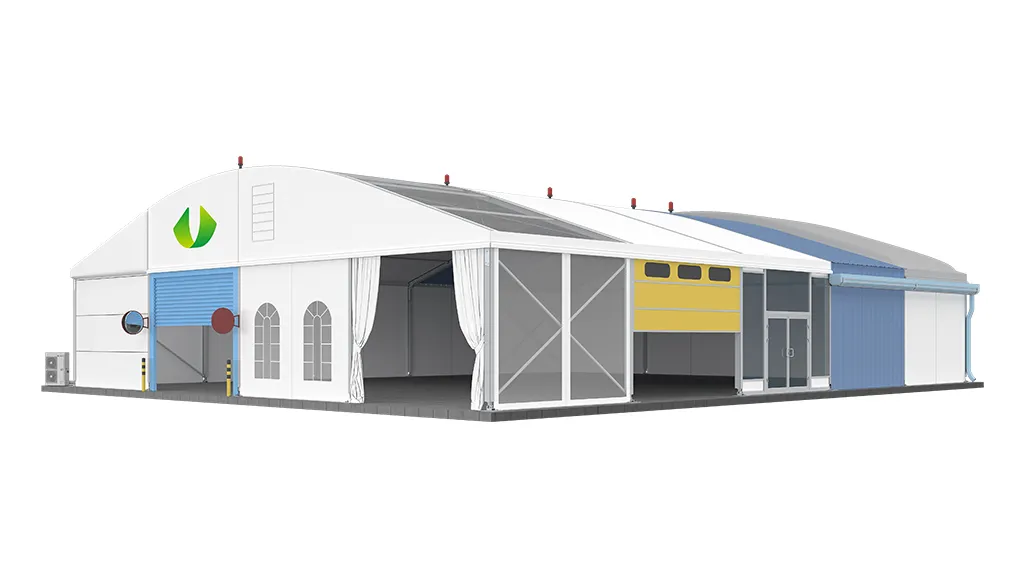

Arcum Tent

The most widely used prefabricated temporary building

Application: Widely used for large exhibitions, outdoor weddings, sporting events, and temporary storage.

Clear Span Design

Our A-frame structures eliminate interior support poles, maximizing usable floor space for storage, equipment, seating, and operational layouts.

Commercial-Grade Materials

Manufactured using 6061-T6 aluminum frame systems paired with durable PVC membrane covers designed for demanding commercial environments.

Modular Expandability

Tent lengths can be extended and configured to meet changing project requirements, making these systems ideal for scalable operations.

Long-Term Performance

Built for repeated use or extended deployment with low maintenance requirements.

Designed For Commercial Applications

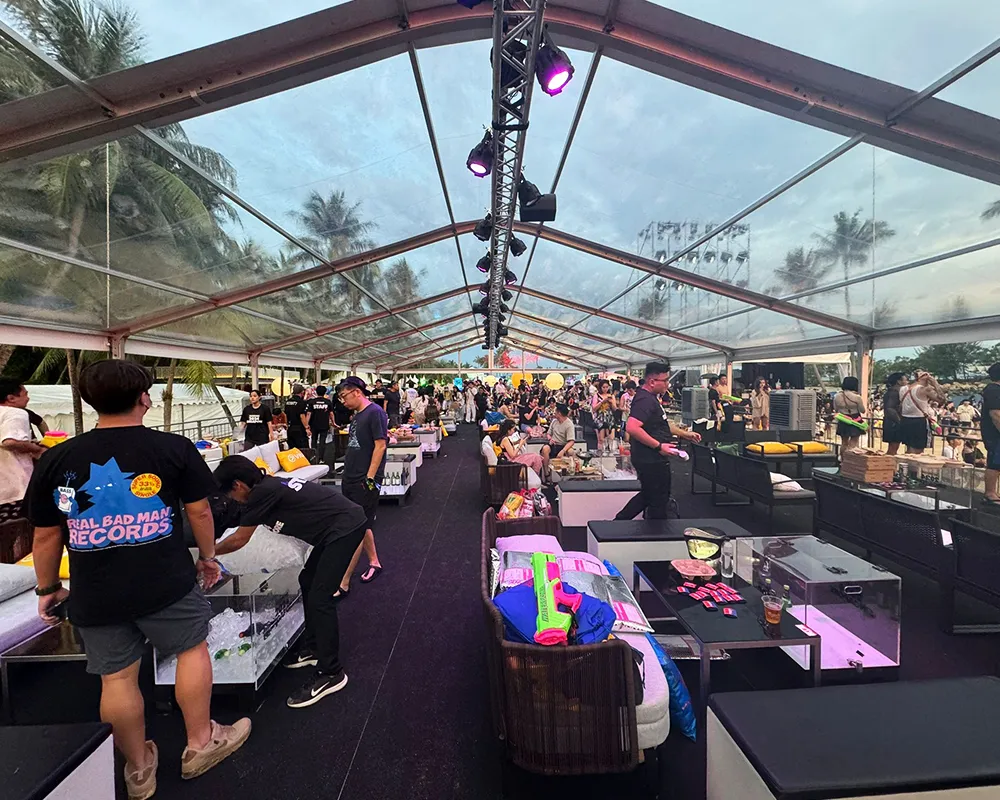

EXHIBITION & GRAND BANGUET

Unique layouts and configurations for high-traffic outdoor events and large-scale gatherings.

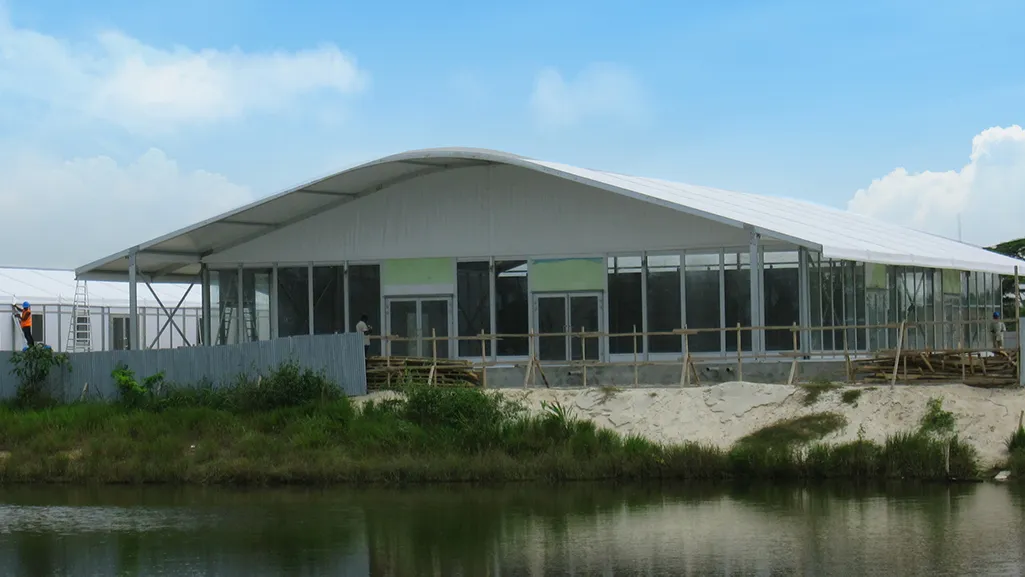

WAREHOUSING & INDUSTRIAL

A robust structure and practical configuration suited for warehouse turnover and industrial operations.

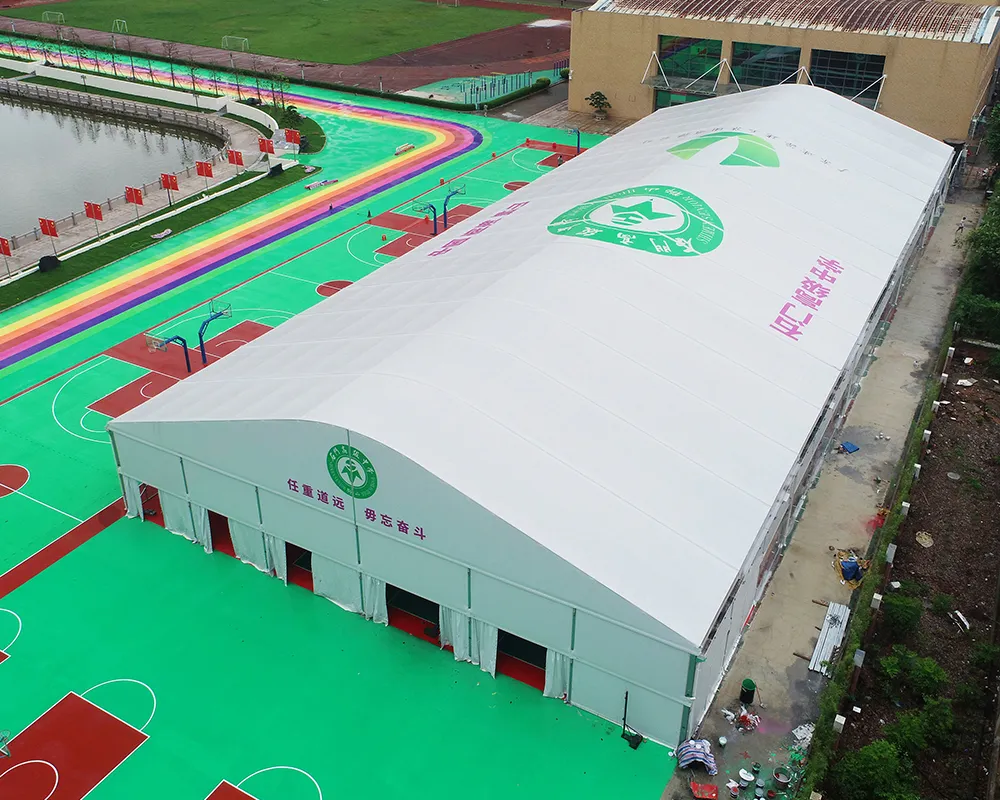

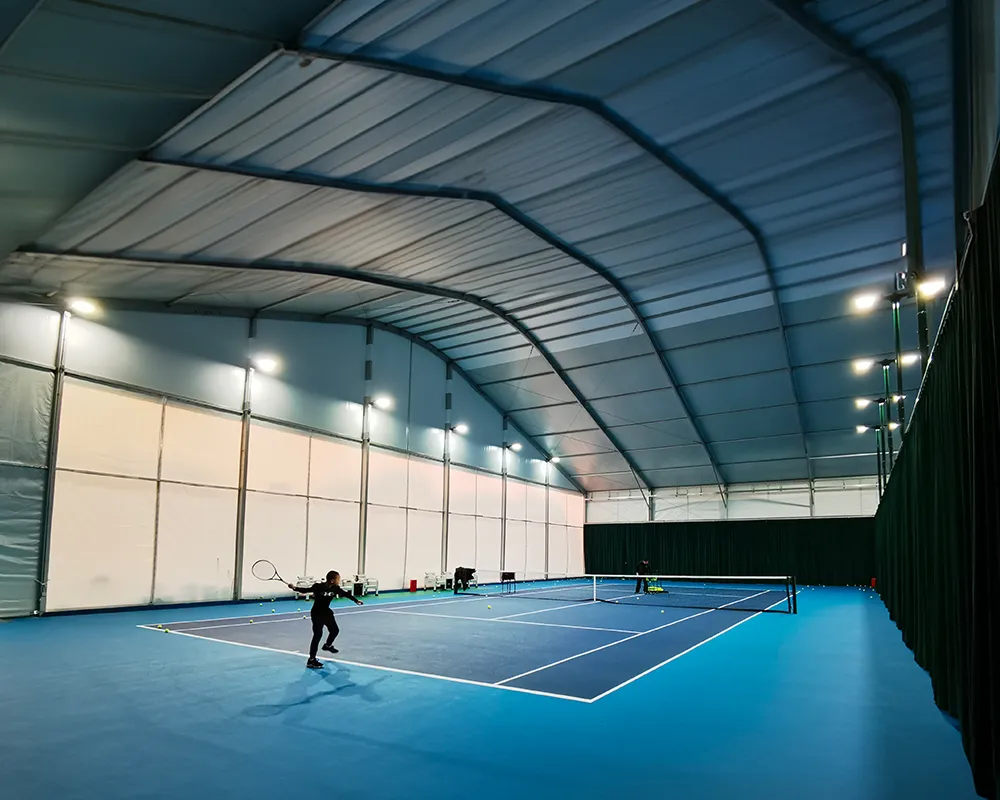

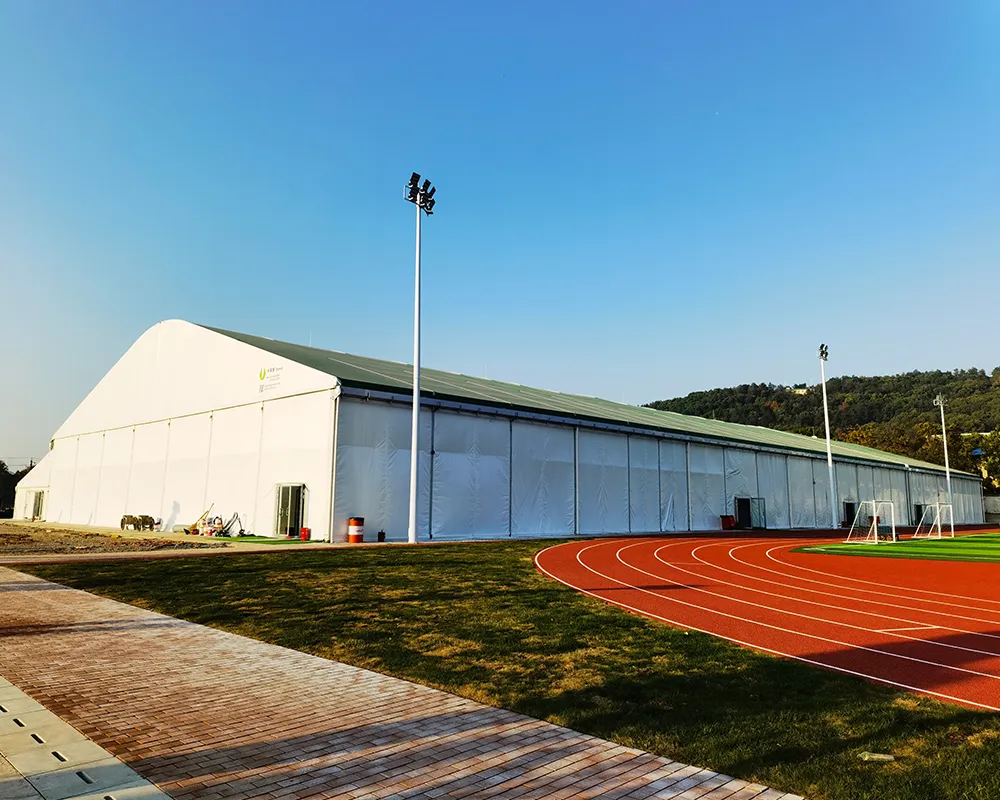

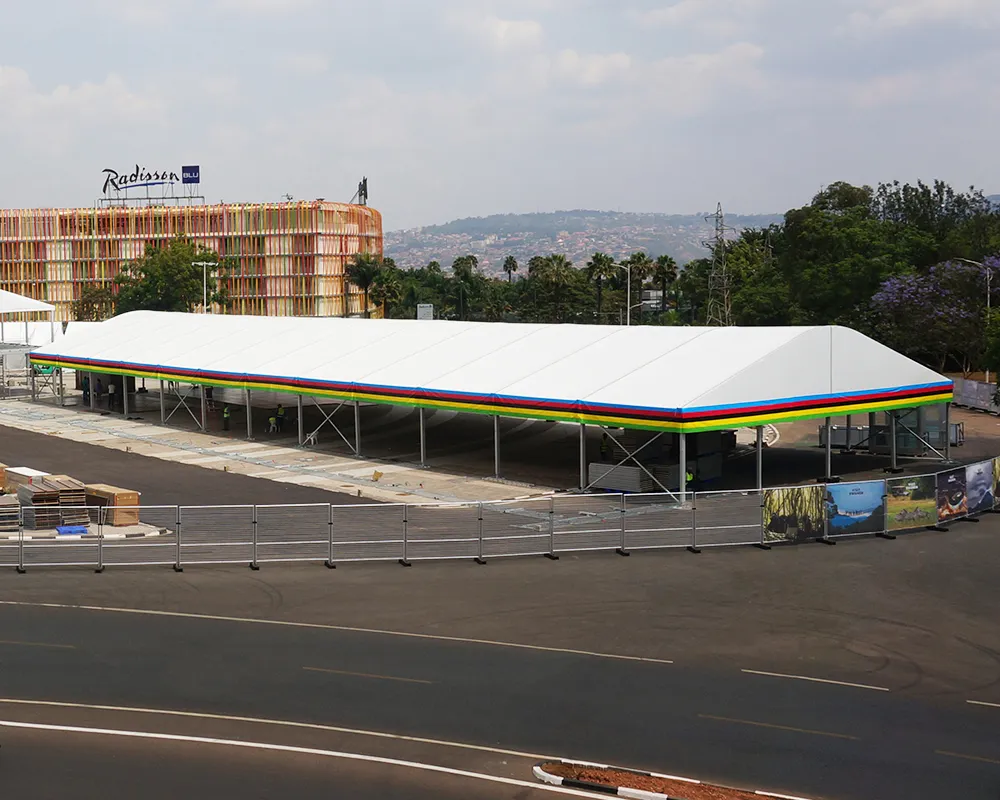

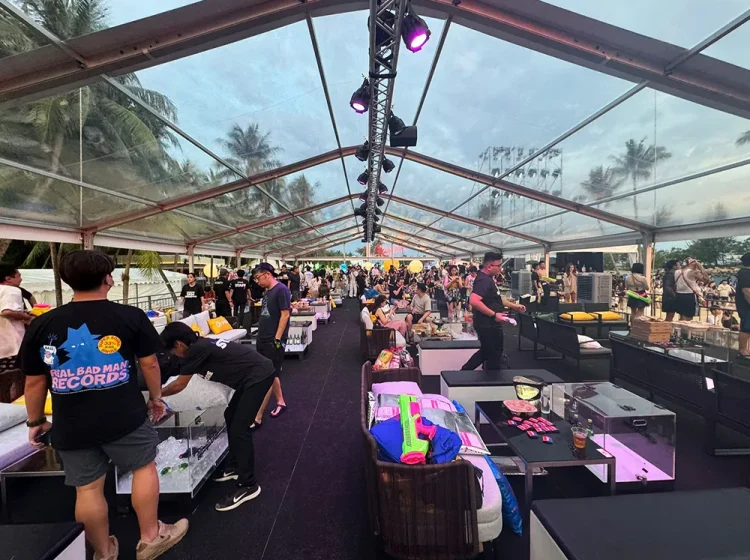

SPORTING & ENTERTAINMENT EVENTS

A diverse spatial layout designed for event performances and leisure-oriented activities.

Specification & Arcum Tent

Arcum Tent
Type	10m	15m	20m	25m	30m	40m
Bay Spacing (m)	5	5	5	5	5	5
Ridge Height (m)	4.2	5.6	6.4	7	8	9.6
Side Height (m)	3.3	4	4	4	4	4
Roof Pitch (degrees)	18	18	218	18	18	18
Main Profile（mm）	150×120×4	204×120×4	204×120×4	256×120×5	300×120×5	300×120×5

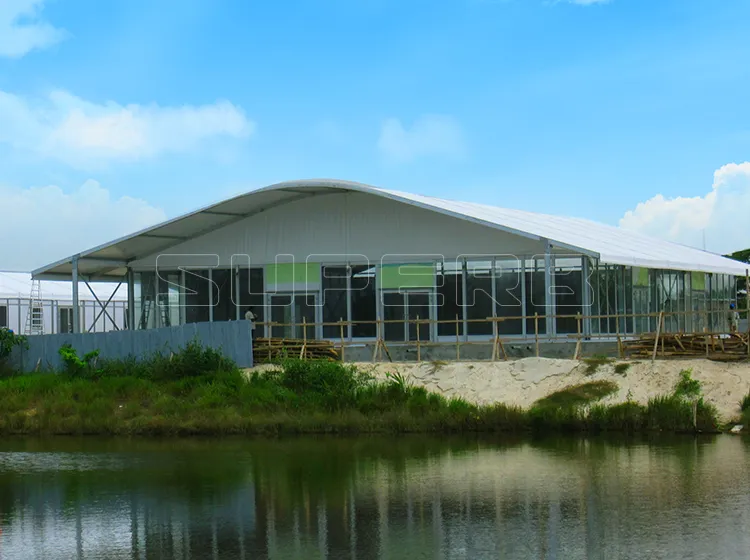

Arcum With Wing
Type	10m	15m	20m	25m	30m	40m
Bay Spacing (m)	5	5	5	5	5	5
Ridge Height (m)	4.5	5.6	6.4	7	8	9.7
Side Height (m)	3.3	4	4	4	4	4
Roof Pitch (degrees)	18	18	18	18	18	18
Roof Overhang (m)	2	2	2	2	2	2
Main Profile（mm）	150×120×4	204×120×4	204×120×4	256×120×5	300×120×5	300×120×5

1.Clear span available between 10 to 40 meters, modular structure, the length is adjustable by 5m unit.

2.SUPERB TENT custom builds each tent to your specifications. For details regarding customization, please feel free to consult our sales.

Structural Materials

High-end tent material standards and a scientifically designed fixing and installation system.

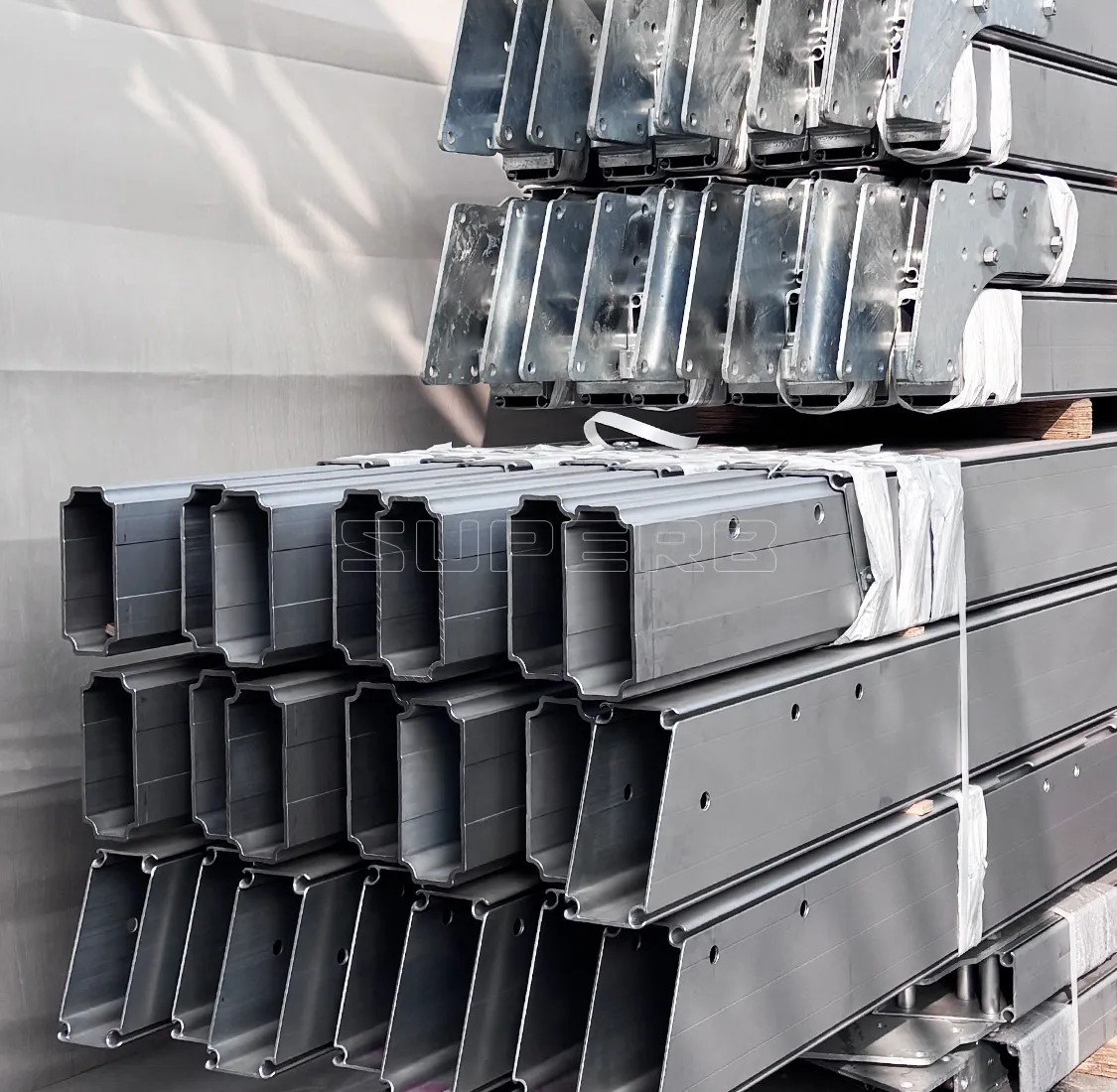

High strength 6061-T6 aluminum alloy frame

Strong resistance to wind and snow loads, meets safety standards, and provides a stable and secure structure.

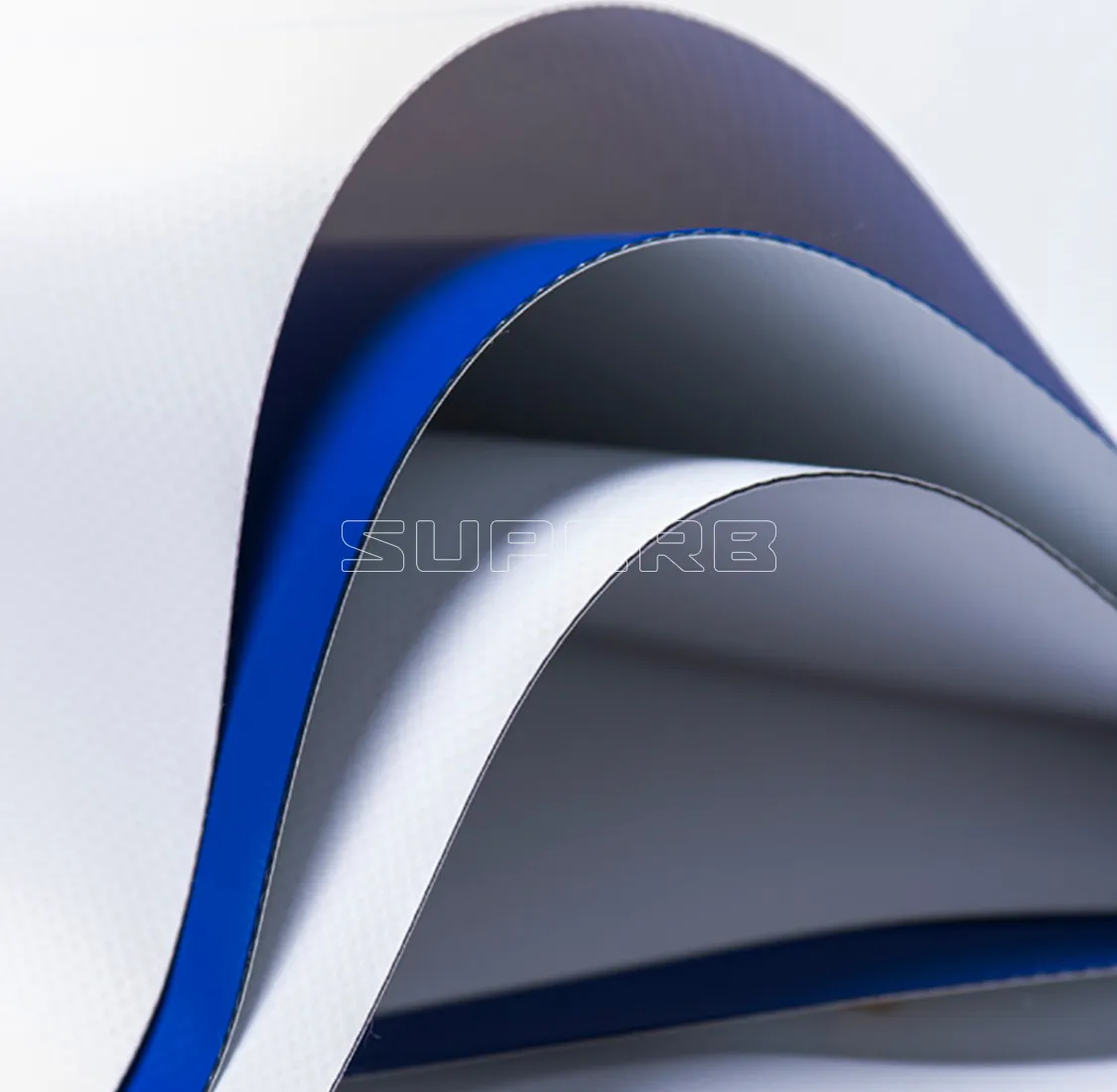

PVC Tarpaulin

Fire resistance, anti-UV, anti-mildew and antibacterial，Fire retardant according to standard NFPA 701 & DIN 4102 B1/ M2.

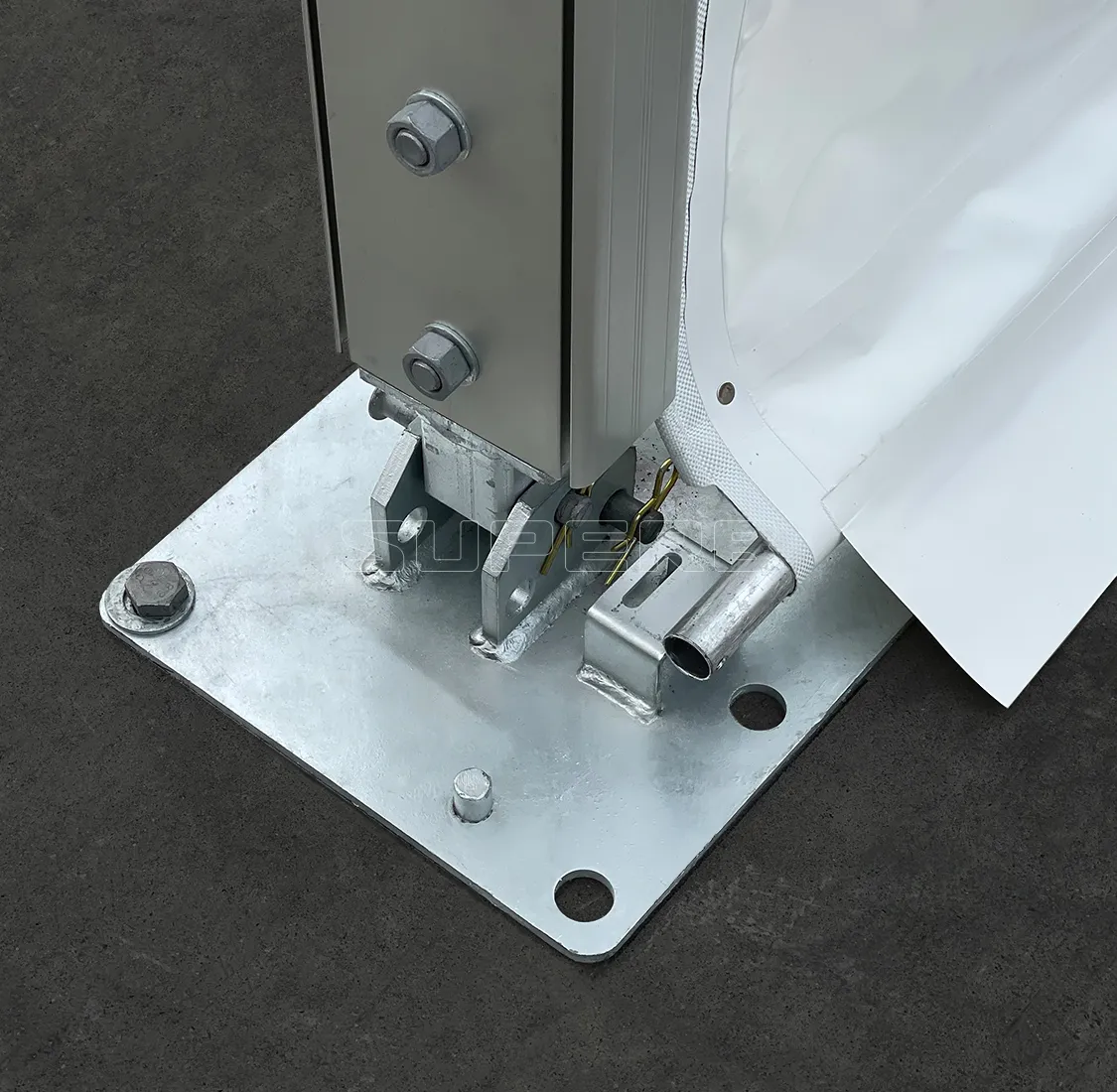

Tent fixing methods

You can secure it using steel anchor, counterweights, expansion bolts, or tie-down ropes, meeting the stability requirements for different scenarios.

Frequently Asked Questions

Get answers to the questions that matter most.

How to Choose the Right Size of Arcum Tents?

Our arcum clear span tents are available in many sizes. To choose the right size, you need to consider the number of guests and the facilities’ sizes. If you want more details about the tent size and need some suggestions, please feel free to contact our team.

Is the Arcum Tent Durable?

Never worry about the service life of the arcum clear span tent. Its abrasion-resistant PVC cover has a lifespan of 5 years and its metal frame can last for 20 years.

Can I Hold Events in the Arcum Tent Under Bright Sunshine?

Yes. No matter how hot the sun is outside, your guests won’t feel hot inside the arcum tent. This is because its tarpaulin is UV-coated to effectively block out the sun’s rays.

Is the Installation Process of the Arcum Tent Complicated?

The arcum tent adopts a modular design and is relatively simple to install.

Which Size Arcum Tent is Suitable for My Event?

Choosing the right size tent depends on the number of guests, the type of event, and the space required for the equipment or event. Our team of experts can help you determine the best size for your specific needs, ensuring that you have enough comfortable space and functions.
