Curve Tent
- 25°Roof pitch and perfect rooftension system
- Special "heart" shape appearance makes the tent more eye-attractive
- Features a higher ridge height and greater interior space
- Wind load : above 100km/h

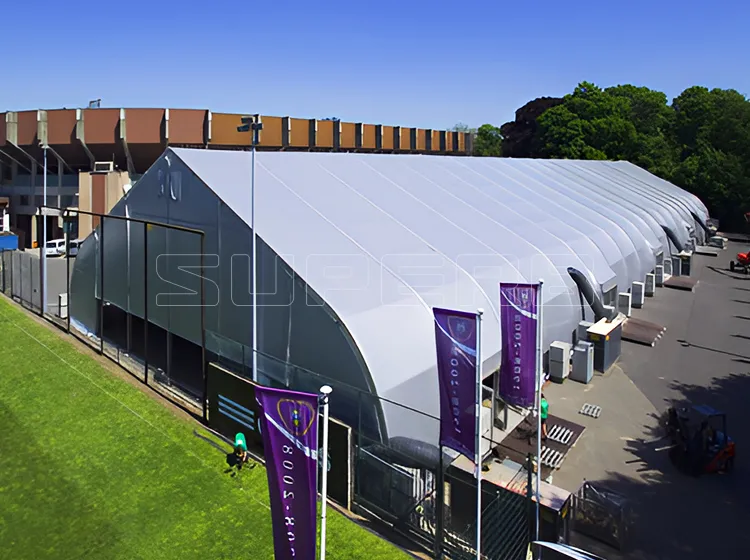

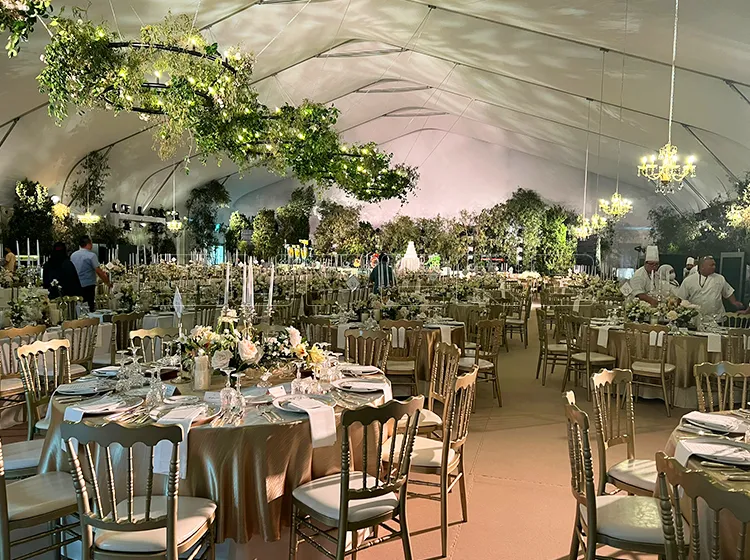

Application: The curve tent is a modern event tent design widely used in exhibitions, weddings, and large outdoor commercial events.
WHAT IS CURVE TENT?
A curve tent is an advanced aluminum frame curve tent structure featuring a stylish curved roof design, providing both aesthetic appeal and strong structural performance.
It belongs to the category of modular exhibition tent structures widely used in global event industries.
Structure Design:
The curved roof structure tent is built with high-strength aluminum alloy (6061-T6), ensuring stability and wind resistance in outdoor environments.
Clear Span Design
Our A-frame structures eliminate interior support poles, maximizing usable floor space for storage, equipment, seating, and operational layouts.
Commercial-Grade Materials
Manufactured using 6061-T6 aluminum frame systems paired with durable PVC membrane covers designed for demanding commercial environments.
Modular Expandability
Tent lengths can be extended and configured to meet changing project requirements, making these systems ideal for scalable operations.
Long-Term Performance
Built for repeated use or extended deployment with low maintenance requirements.
Designed For Commercial Applications
The curve tent is widely used as an exhibition curve tent solution for international trade shows and commercial events.

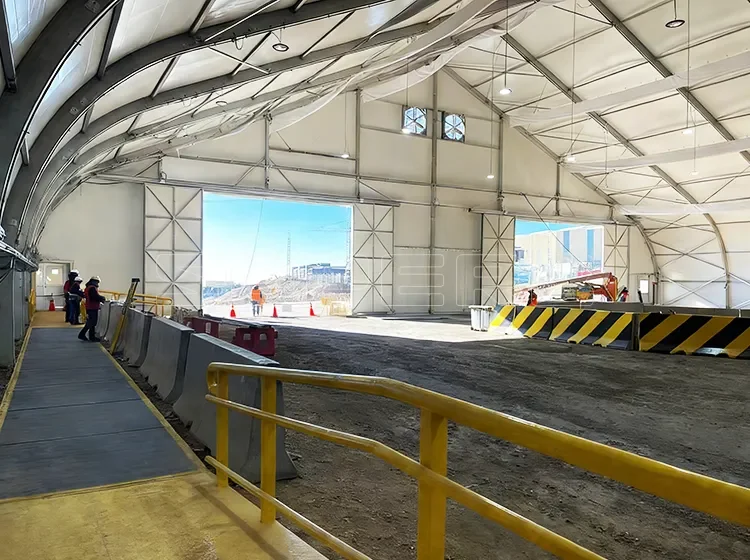

INDUSTRIAL & STORAGE
A robust structure and practical configuration suited for warehouse turnover and industrial operations.
EXHIBITION & EVENT & FESTIVALS
Unique layouts and configurations for high-traffic outdoor events and large-scale gatherings.

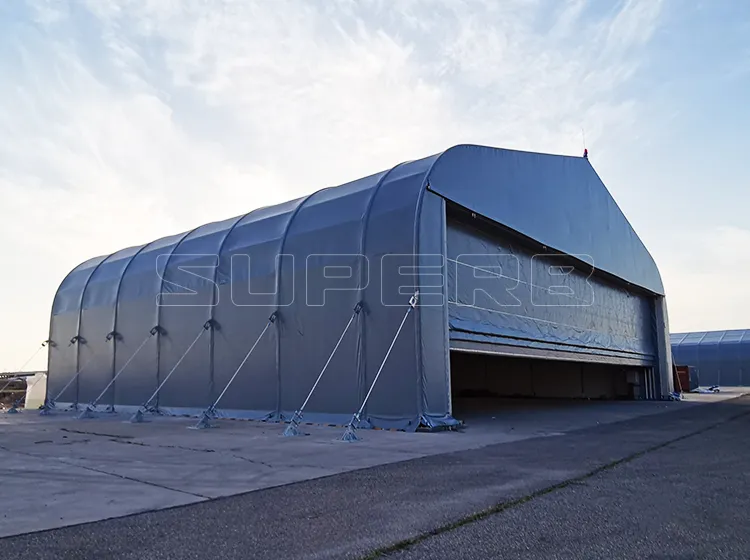

AVIATION & MILITARY
Professional spaces and safe layouts designed to accommodate drill training and equipment parking.
Technical Specifications
| Curve Tent | ||||||
| Type | 12m | 15m | 20m | 25m | 30m | 40m |
| Bay Spacing (m) | 4 | 5 | 5 | 5 | 5 | 5 |
| Ridge Height (m) | 6.7 | 7.6 | 8.8 | 9.9 | 11.5 | 13.8 |
| Side Height (m) | 4 | 4 | 4 | 4 | 4 | 4 |
| Roof Pitch (degrees) | 25 | 25 | 25 | 25 | 25 | 25 |
| Main Profile（mm） | 150×120×4 | 204×120×4 | 204×120×4 | 256×120×5 | 300×120×4 | 300×120×4 |
| Curve With Straight Pole | ||||||
| Type | 6m | 10m | 20m | 25m | 30m | 40m |
| Bay Spacing (m) | 3 | 3 | 5 | 5 | 5 | 5 |
| Ridge Height (m) | 4.3 | 5.3 | 7.3 | 9.5 | 10.7 | 12.7 |
| Side Height (m) | 2.6 | 2.6 | 3.3 | 4 | 4 | 4 |
| Roof Pitch (degrees) | 25 | 25 | 25 | 25 | 25 | 25 |
| Main Profile（mm） | 122×68×3 | 122×68×3 | 150×120×4 | 204×120×4 | 256×120×5 | 300×120×5 |
1.Clear span available between 6 to 40 meters, modular structure, the length is adjustable by 5m unit.
2.SUPERB TENT custom builds each tent to your specifications. For details regarding customization, please feel free to consult our sales.
Structural Materials
Frequently Asked Questions
Get answers to the questions that matter most.
What Makes Curve Structure Different from Standard Tents?
Curve structures feature a curved roof and reinforced frame, allowing them to support higher wind and snow loads compared to standard A-frame tents.
Can Curve Structures be used as Permanent Buildings?
Yes. With the right accessories like insulation, rigid panels, and HVAC, curve tents canserve as semi-permanent or long-term facilities.
Are these Structures Relocatable?
Absolutely. Despite their strength, curve tents are modular and designed to be dismantled and reinstalled multiple times.
What Customization options are Available?
You can choose door types (rolling, sliding, or industrial), add lighting, ventilation,insulation, wall materials (PVC or steel), branding, and more.
